InfoLinker Plus Sample Figure Destinations Rule

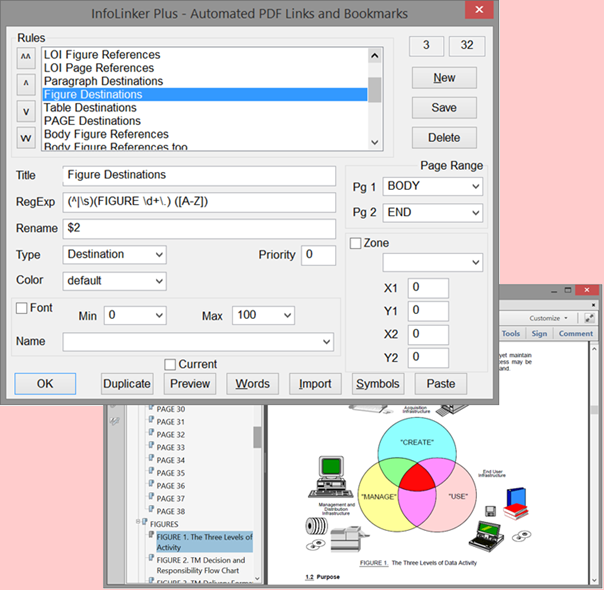

The next rule looks for all of the figures in the body of the document. The title of the rule in the figure is “Figure Destinations”. It is a Destination type of rule. It applies to the body of the document. And the pattern that is searched (RegExp) is the start of a string “(^|\s)”, then the word “FIGURE” followed by a space a number and a period. This pattern is then followed by another space and an uppercase letter “[A-Z]”. The second search pattern in parenthesis defines the name of the destination. That is “(FIGURE \d+\.)” defines the destination name. Examples are “FIGURE 1.”, “FIGURE 4.”, and “FIGURE 12.”. The bookmarks that are created also added the text string that follows the destination name that is on the same line of text. Example: “FIGURE 1. The Three Levels of Activity”. Any source links to this figure only need to have the pattern of “Figure 1.” Or “FIGURE 1.” to link to this object.
